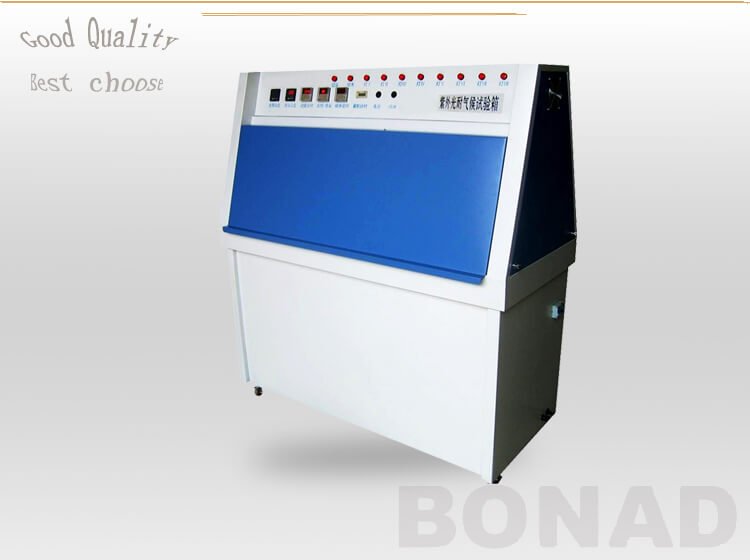

    UV-resistant climate test chamber BND-HZW

    This series is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources.The uv weather resistance test chamber can provide reliable aging test data to make the exact prediction of products‘ weathering fastness(ageing resistance)., which is conducive to sift and optimize the formula. It is used in many industries, such as: paint, inks, resin, plastics, printing and packaging, adhesives, auto and motorcycle industry, cosmetics, metal, electronic, electroplating, medicine,etc.
    Description

    Product Description:

    Name:UV-resistant climate test chamber

    Type:BND-HZW


    Purpose:

    This series is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources.The uv weather resistance test chamber can provide reliable aging test data to make the exact prediction of products' weathering fastness(ageing resistance)., which is conducive to sift and optimize the formula. It is used in many industries, such as: paint, inks, resin, plastics, printing and packaging, adhesives, auto and motorcycle industry, cosmetics, metal, electronic, electroplating, medicine,etc.


    Structure:

    1,The inner bladder of the chamber is made of imported high-class stainless steel plate while the outer bladder is made of A3 steel plate sprayed with plastic.

    2, The heating mode adopts inner bladder trough type heating with its rapid temperature rise and even temperature distribution.

    Product Spec.and Technical parameter table

    model

    BND-HZW-01

    Stidio size(mm)

    D

    450

    W

    1170

    H

    500

    Dimensions

    D

    660

    W

    1330

    H

    1130

    Temperature Range

    RT+10ºC-70ºC

    Humidity Range

    75-98%RH

    Humidity uniformity

    ±2%

    Temperature uniformity

    ±2ºC

    Temperature fluctuation

    ±0.5ºC

    Standard dimension of sample

    75*150mm or 75*300mm

    water tank depth

    25mm,automation

    Effective radiation area

    900*210mm

    UV Wavelength

    UV-A: 315-400nm/ UV-B: 280-3150nm/UV-C:< 280

    Test time

    0-999H adjustable

    Outer /Inner material of box

    SUS304

    Black Panel Temp

    40ºC-65ºC

    power supply

    380V

    Power Output

    4KW

    Standard Configuration

    A roll of wet bulb gauze,Three insurance,16th Lamp. one radiometer

    Standards Applied

    ASTM D4329.D499.D4587.D5208.G154.G53.ISO4892-3.ISO11507.EN534.prEN1062-4.BS2782.JIS D0205.SAE J2020
