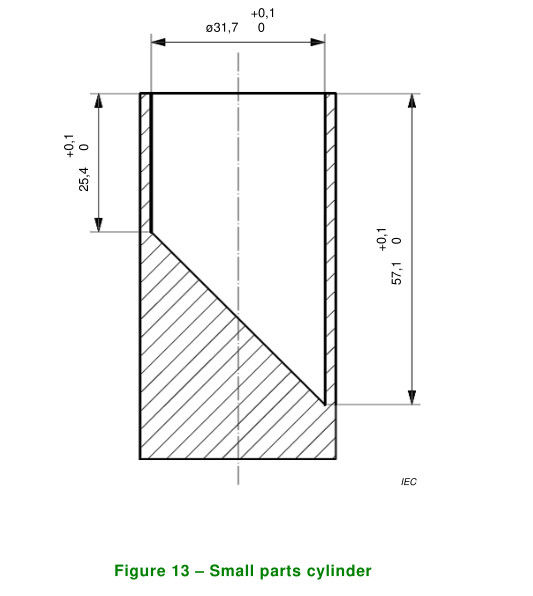

    IEC 60335-1: 2013 clause 22.12 figure 13 small parts cylinder

    Product Description:Name:IEC 60335-1: 2013 clause 22.12 figure 13 small parts cylinderType:BND-SPCRefer Standards:This small parts cylinder conforms to IEC60335-1: 2013 clause 22.12 figure 13, ISO 8124-1 clause 5.2 and fig. 15, etc.It is used to check whether there is possibility that the small cells and batteries or children‘s products like the toys can be swallowed by the children under 36 months.
    Description

    Product Description:

    Name:IEC 60335-1: 2013 clause 22.12 figure 13 small parts cylinder

    Type:BND-SPC


    Refer Standards:

    This small parts cylinder conforms to IEC60335-1: 2013 clause 22.12 figure 13, ISO 8124-1 clause 5.2 and fig. 15, etc.

    It is used to check whether there is possibility that the small cells and batteries or children's products like the toys can be swallowed by the children under 36 months.


    Application:

    It is used to check whether there is possibility that the small cells and batteries or children's products like the toys can be swallowed by the children under 36 months.


    Test Principle:

    The testing object is placed into the tester from any directions. If it can reach to the button of the tester, the object is proved to be small object.


    Technical Parameters of Small Parts Cylinder

    Model

    BND-SPC

    Material

    Stainless steel

    Dimension

    41×41×66mm

    Dimensional tolerance

    0.1mm

    Weight

    438g

    Standard

    16 CFR 1500.48, ASTM F963, EN-71-1, ISO 8124-1,IEC60335-1: 2013 clause 22.12 figure 13


    Technical Parameters:
